Name: High Torque Output Brushed DC Torque Motor with Up to 85% Efficiency and Compact Size for Industrial Automation
Brand: Shaanxi Shinhom Enterprise Co.,Ltd
SKU: Motore coppia CC con spazzole
Availability: InStock

Caratteristiche Galleria Descrizione di prodotto Parla adesso.

Caratteristiche

Specificazioni

voltaggio:: 12V/24V

Coppia di torsione:: Da 0,1 Nm a 1,5 Nm (a seconda del modello)

Gamma di velocità:: Da 500 a 3000 giri/min

Efficienza:: Fino a 85%

Tipo di motore:: CC spazzolata

Temperatura operativa:: -10°C a +60°C

Peso:: Da 0,8 kg a 2,5 kg (a seconda del modello)

Personalizzazione:: Disponibile per configurazioni personalizzate di coppia e velocità

Livello di rumore:: ≤55dB (a seconda della velocità)

Tipo di raffreddamento:: Raffreddamento a aria naturale

Applicazioni:: Robotica, sistemi di trasporto, apparecchiature di prova, piccoli elettrodomestici

Evidenziare:

Brushed DC Torque Motor Compact Size

High Torque Brushed DC Torque Motor

Compact Brushed DC Torque Motor

Informazioni di base

Luogo di origine: Cina

Marca: SHINHOM

Certificazione: RoHS/ISO/UL/CE/IATF16949/CNAS

Numero di modello: Motore coppia CC con spazzole

Termini di pagamento e spedizione

Tempi di consegna: 2~8 settimane

Termini di pagamento: L/C,T/T

Galleria

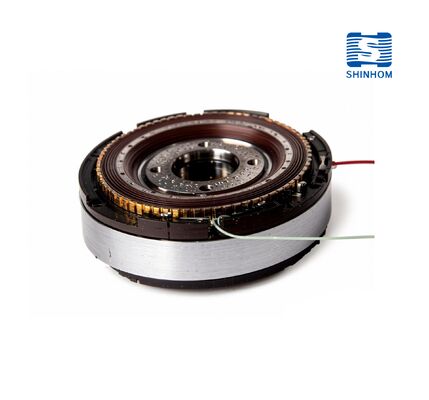

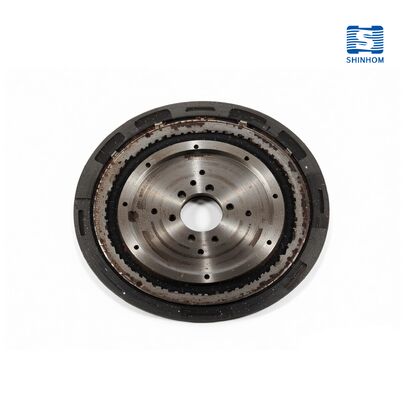

High Torque Output Brushed DC Torque Motor with Up to 85% Efficiency and Compact Size for Industrial Automation

Descrizione di prodotto

High-Performance Brushed DC Torque Motor

Engineered for demanding industrial automation tasks, this brushed DC torque motor delivers reliable torque output with exceptional precision and efficiency. Designed to excel in environments where high torque at low speeds and consistent performance are crucial, its rugged construction and high energy efficiency make it ideal for robotics, conveyor systems, and other automation applications requiring continuous operation under load.

Key Features & Benefits

High Torque Output: Robust torque generation ensures smooth, powerful performance at low speeds
Brush Technology: Traditional brushed DC motor design for cost-effective, simple implementation with reliable performance
High Efficiency: Minimizes energy loss and heat generation for optimal energy use during operation
Durable Construction: Built to withstand demanding industrial environments with robust, reliable design
Compact Size: Delivers high torque in a compact form factor, ideal for space-constrained applications

Technical Data

Model	Peak Stall			Continuous Stall			Maximum No-load Speed (r/min)	Torque Ripple Coefficient (%)
Model	Voltage (V)	Current (A)	Torque (N·m)	Voltage (V)	Current (A)	Torque (N·m)	Maximum No-load Speed (r/min)	Torque Ripple Coefficient (%)
J49LYX01	44.3	≤7.73	≥0.443	14.6	≤2.576	≥0.148	2990	≤5
J50LYX01	27	≤2	≥0.25	9	≤0.67	≥0.08	1200	≤6
J72LYX01	22.4	≤6	≥0.32	11	≤2.8	≥0.14	2273	≤5
J75LYX01	27	≤3	≥1.2	11	≤1.3	≥0.5	≤600	≤6
J76LYX01	22.4	≤5.5	≥0.43	11	≤2.5	≥0.2	1222	≤5
J88LYX-CJ01	27	≤2.7	≥19	9	≤1	≥4	25	≤6
180LYX01	28	≤5.04	≥14.7	13	≤2.5	≥7	65	≤6
180LYX02	27	≤4	≥9.8	12	≤1.8	≥4	65	≤6
200LYX01	27	≤5	≥4.9	12	≤2.2	≥2	—	≤5

Industrial Applications

Industrial Automation: Automated assembly lines and robotic systems
Conveyor Systems: Manufacturing facility conveyors requiring smooth, reliable torque
Test Equipment: Laboratory testing environments with precision torque requirements
Small Appliances: Consumer electronics motors where high torque is needed in compact designs
