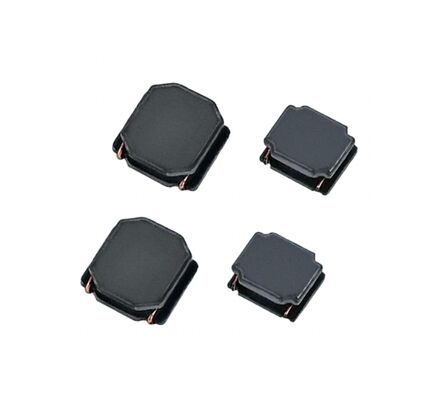

LPS4520 Power Inductor with 1.5mH to 20mH Inductance Range and 4520 Form Factor for EMI Filtering

5000
MOQ
LPS4520 Power Inductor with 1.5mH to 20mH Inductance Range and 4520 Form Factor for EMI Filtering
Caratteristiche Galleria Descrizione di prodotto Parla adesso.
Caratteristiche
Specificazioni
Evidenziare:

1.5mH to 20mH Power Inductor

,

4520 Form Factor Radial Leaded Inductor

,

EMI Filtering Dip Power Inductor
Informazioni di base
Luogo di origine: Cina
Marca: SHINHOM
Certificazione: RoHS/ISO/UL
Numero di modello: LPS4520
Documento: LPS4520_.pdf
Termini di pagamento e spedizione
Tempi di consegna: 2~8 settimane
Termini di pagamento: L/C, T/T
Descrizione di prodotto
LPS4520 Power Inductors - 1.5mH to 20mH Radial Leaded Inductors for EMI Filtering
The LPS4520 series power inductors are radial leaded inductors designed for signal filtering, noise suppression, and power conditioning applications. Featuring a compact 4520 form factor, these inductors offer a wide inductance range from 1.5mH to 20mH, making them suitable for various industrial and electronic circuit designs.
With stable inductance performance measured at 1kHz, 0.25V, the LPS4520 series provides reliable electrical characteristics for EMI filtering, power line noise suppression, and general-purpose inductive applications. The inductors are manufactured with high-quality magnetic cores and insulated windings to ensure consistent performance, mechanical stability, and long-term reliability in demanding environments.
Key Features
  • Wide Inductance Range - Available from 1.5mH to 20mH (1500 µH-20000µH)
  • Compact 4520 Size - Suitable for space-limited PCB and through-hole designs
  • Radial Leaded Structure - Easy installation and strong mechanical stability
  • Stable Electrical Performance - Tested at 1kHz, 0.25V with ±20% tolerance
  • Low Loss Design - Optimized DCR for efficient signal and power filtering
  • Industrial Grade Materials - Designed for long-term operation and reliability
Electrical Specifications
Inductance Range 1500µH - 20000µH
Inductance Tolerance ±20%
Test Condition 1kHz, 0.25V
DC Resistance (DCR) 25Ω - 180Ω (depending on inductance value)
Rated DC Current (IDC) 0.1A - 0.3A (reference value, varies by inductance)
Mechanical Dimensions
Length 45 mm
Width 20 mm
Height 20 mm
Mounting Type Radial leaded / Through-hole
Applications
  • EMI and RFI filtering
  • Power line noise suppression
  • Signal conditioning circuits
  • Industrial control electronics
  • Power supply filtering
  • General-purpose inductive components
Customization & Support
  • Custom inductance values available
  • Current rating can be optimized based on application requirements
  • OEM / ODM service supported
Please contact us for detailed datasheets, samples, or customized solutions.
